On-Premises Setup
One standard inspection station per production line
Every line gets the same station: cameras and lighting on a mounting frame, an Edge PC that runs the AI inference on the spot, and a warning light and operator console that show the result. Add a line, add a station.
01

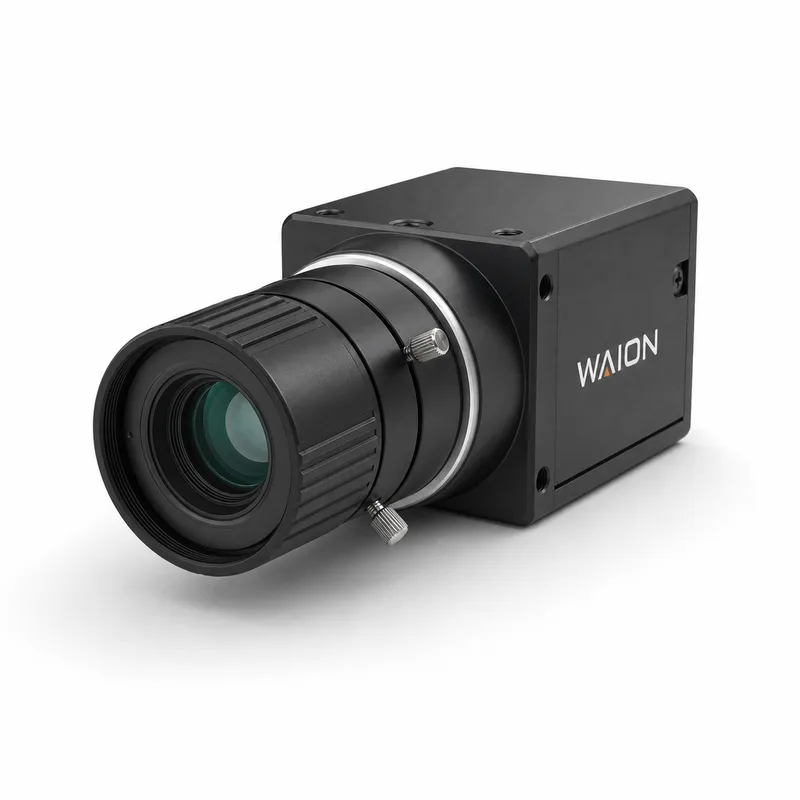

Inspection Station
Camera and light on a mounting frame, aimed at the part from a fixed working distance.
02

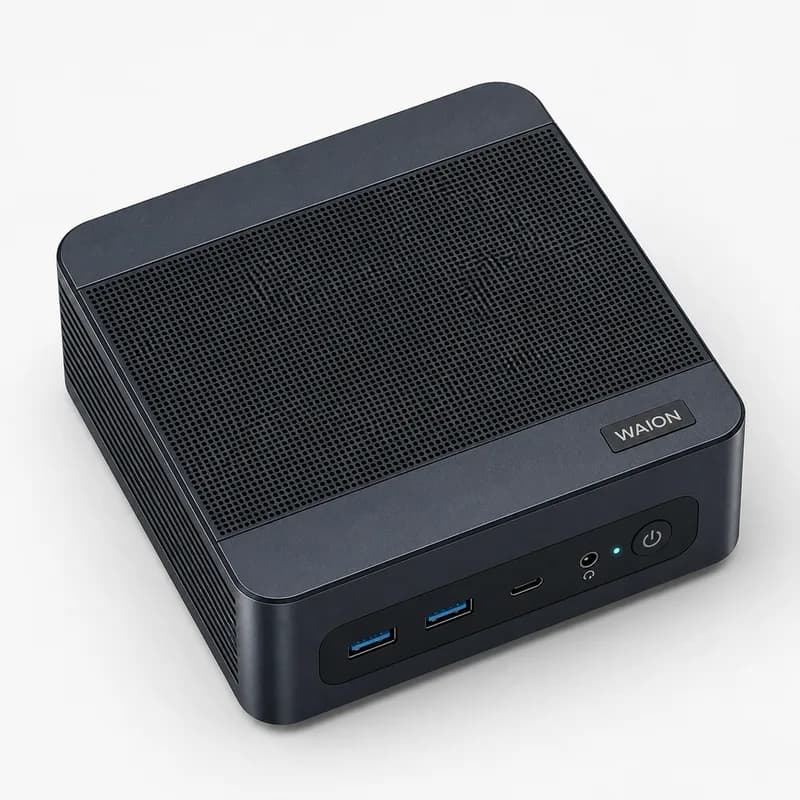

Edge PC
Local processing — real-time AI inference right at the line, with no round trip to a server.
03

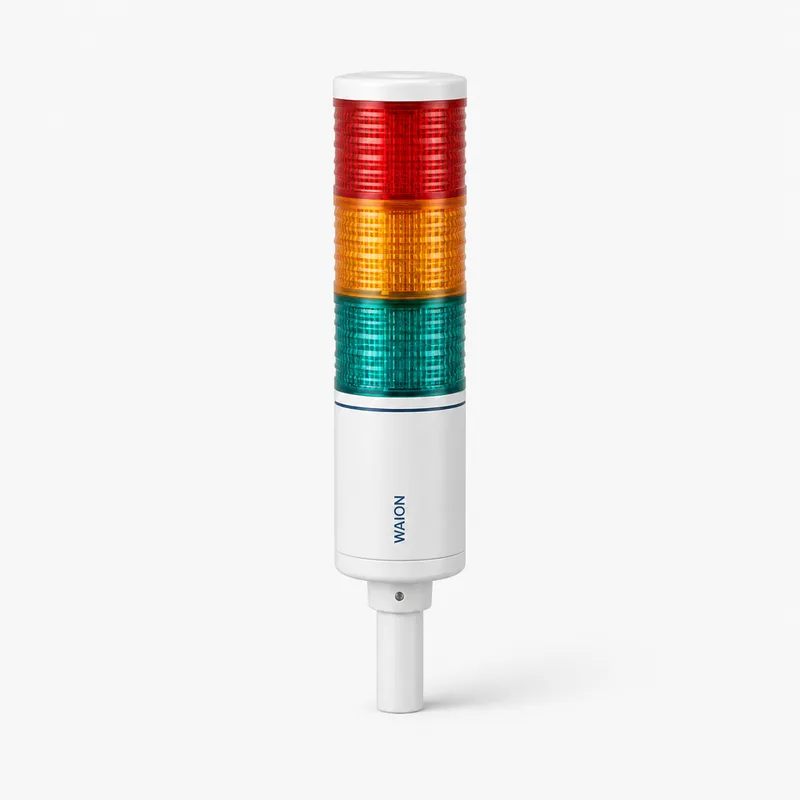

Defect Alert
An NG verdict turns on the line’s warning light so the operator notices at once.
04
Operator Console

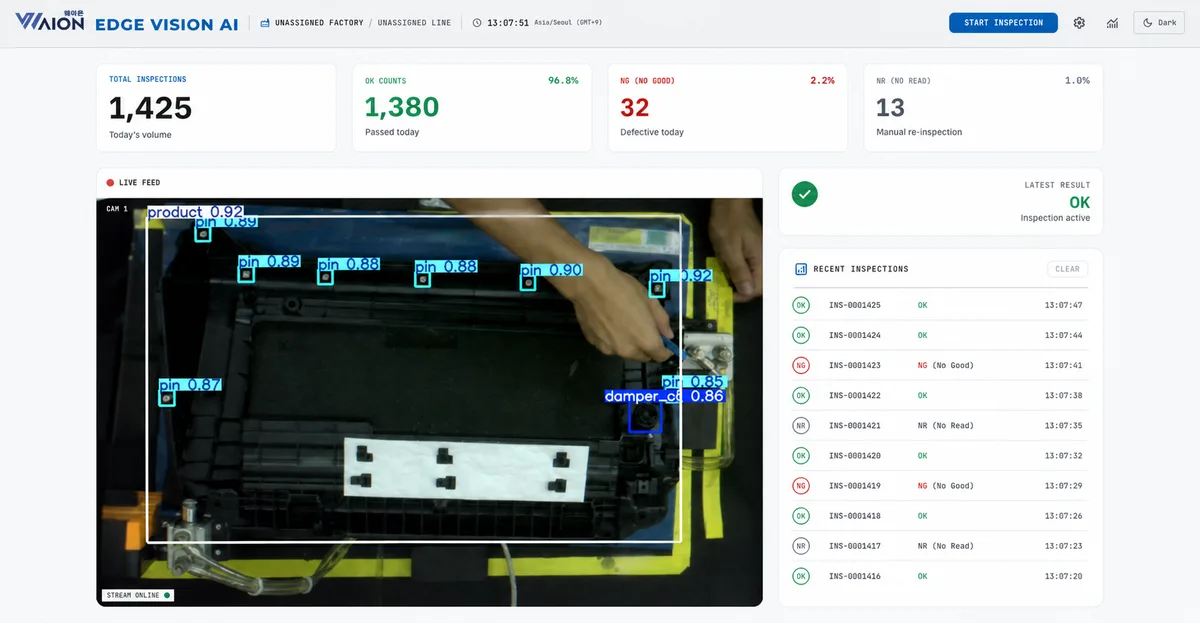

Live feed, verdict and inspection log on a screen beside the line.
Stations join the plant network; the server stays in the office
Cameras feed the Edge PC by cable. From there the wireless AP and router carry inspection data over the LAN to the central server — WAION Vision Master Console with a UPS — in the office zone.
Factory zone
01
Inspection Station
Cameras and lighting at the line.
02
Edge PC
Inference at the line; results go out over Wi-Fi.
03

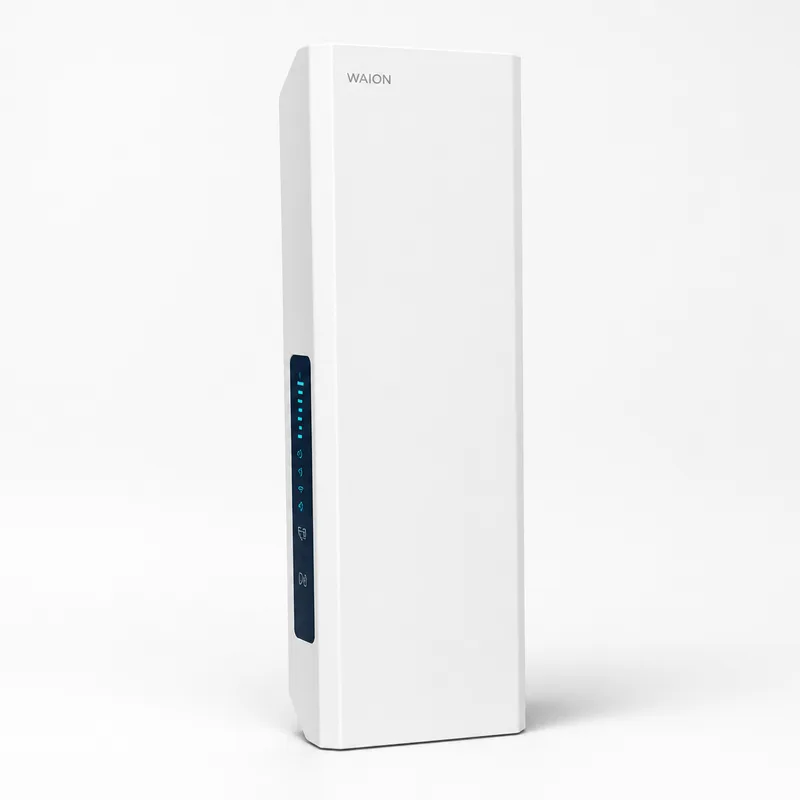

Wireless AP
Bridges the line to the plant LAN.
04

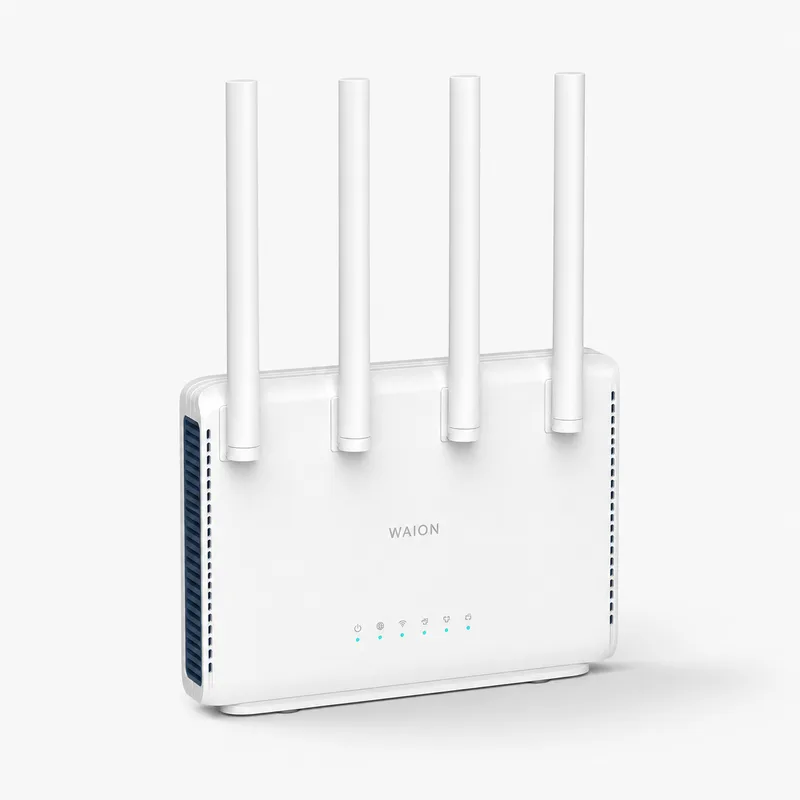

Router
Routes inspection data to the office.
Office zone
05

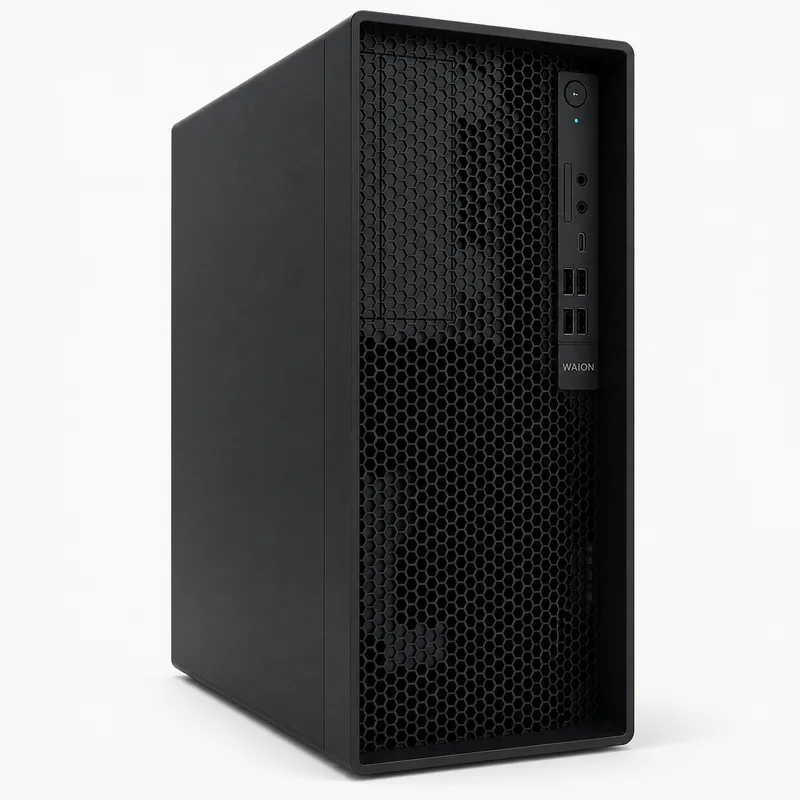

Central Server
WAION Vision Master Console + UPS. Stores results and serves the console for every line.
Short cable runs
LAN cables are kept as short as possible near the router and the AP.
Power at the network gear
A power outlet is required near the router and the AP.
Keeps running offline
Edge inference keeps running locally if the network link drops.
