Vision Camera
2 MP · 12 mm · GigE · C-mount
One camera and one lens, specified as a pair

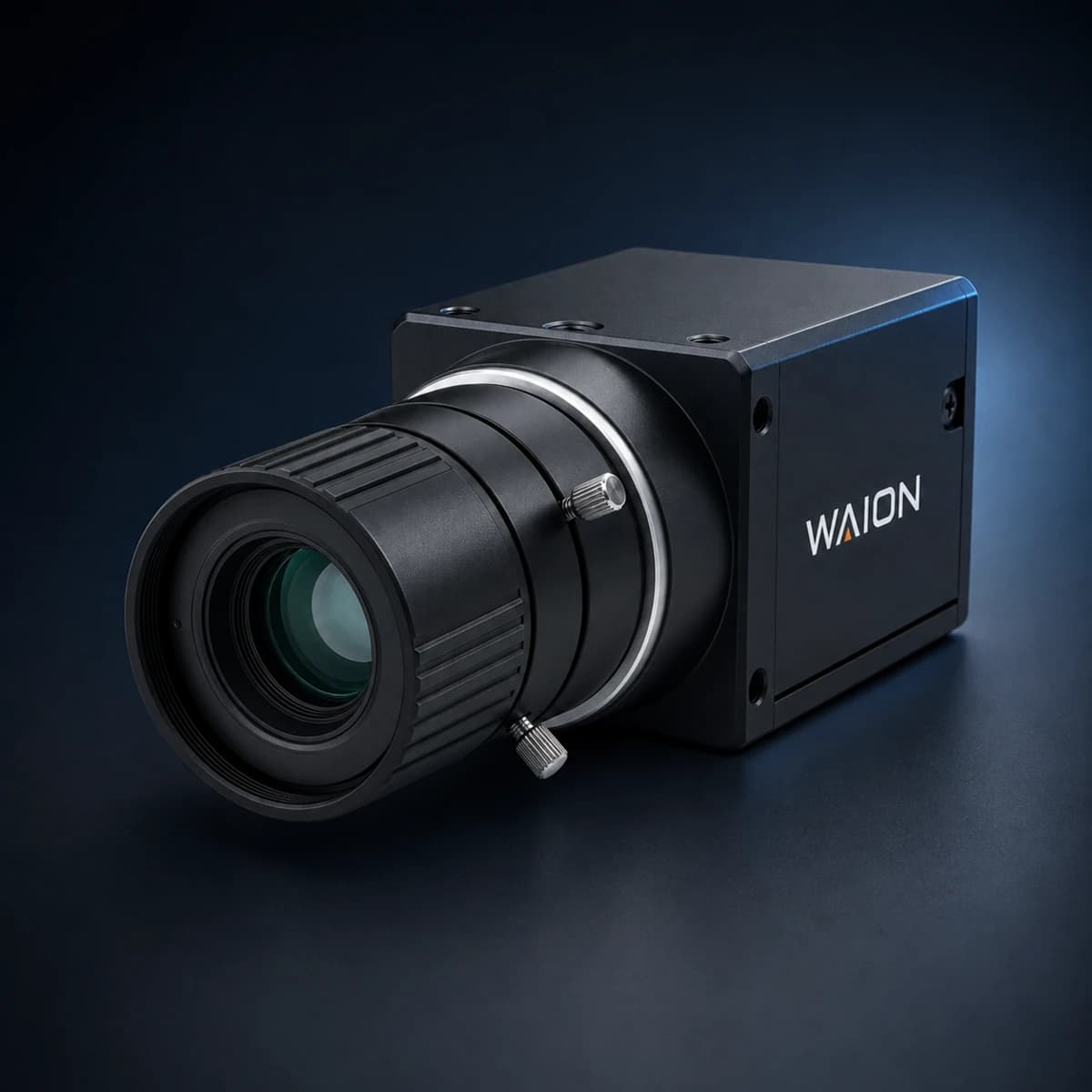

A 2 MP global-shutter GigE camera with a 12 mm low-distortion lens. Alongside the figures, the field of view and resolution are worked out for the two used together.
- Resolution
- 1624 × 1240 px
- Approx. 2.0 MP · stacked BSI global shutter
- Focal length
- 12 mm
- F2.8–F16 · C-mount · fixed focal length for 2/3"
- Maximum frame rate
- 60.3 fps
- At full resolution · GigE
- Angle of view (this pair)
- 26.3° × 20.2°
- 32.7° diagonal · calculated
Specifications
01
Imaging and performance
Camera
| Item | Camera |
|---|---|
| Product type | 2 MP area scan camera · GigE · 2nd generation · color |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI (back-side illuminated) |
| Sensor size | 1/2.53" |
| Image resolution | 1624 × 1240 (approx. 2 MP) |
| Pixel size | 3.45 µm × 3.45 µm |
| Active sensor area | 5.60 mm × 4.28 mm (7.05 mm diagonal) · calculated |
| Frame rate | 60.3 fps at 1624 × 1240 (Mono 8 / Bayer GB 8) |
| Dynamic range | 66.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 23 µs to 10 s |
| Exposure mode | Off / Once / Continuous |
| Color / mono | Color |
| Pixel formats | Mono 8/10/10Packed/12/12Packed · Bayer GB 8/10/10Packed/12/12Packed · YUV422Packed · YUV422_YUYV_Packed · RGB 8 · BGR 8 |
| Binning / decimation | 1 × 1, 2 × 2, 4 × 4 for each |
| Image flip | Horizontal and vertical flip |
| Lens mount | C-mount |
| Lighting | Not built in (external lighting configured separately) |
02
Connectivity and communication
Camera
| Item | Camera |
|---|---|
| Data interface | Gigabit Ethernet (1000 Mbit/s); Fast Ethernet (100 Mbit/s) compatible |
| Protocols / standards | GigE Vision V2.0, GenICam |
| Connector | 6-pin P7 connector (power and I/O combined) |
| Isolated input | 1 × opto-isolated input (Line 0) |
| Isolated output | 1 × opto-isolated output (Line 1) |
| General-purpose I/O | 1 × non-isolated bidirectional I/O (Line 2) |
| Power supply | 9 to 24 VDC, PoE supported |
| Power consumption | 1.8 W typical at 12 VDC (1.9 W max at 12 VDC) |
| Client software | Any GigE Vision-compatible client software |
| Supported OS | Windows 7/10 (32/64-bit), Windows 11 (64-bit), Linux (32/64-bit) |
03
Mechanical and environmental
Camera
| Item | Camera |
|---|---|
| Dimensions | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g |
| Ingress protection | IP40 (with lens and cabling fitted as specified) |
| Operating temperature | −30 °C to 60 °C |
| Storage temperature | −30 °C to 80 °C |
| Humidity | 20% to 95% RH, non-condensing |
| Certifications | CE, RoHS, KC |
Field of view and resolution at each working distance
Imaged area. Left value = horizontal FOV, right value = vertical FOV (mm; inches in parentheses).
FOV and resolution by working distance
| Working distance WD (mm) | Horizontal FOV (mm) | Vertical FOV (mm) | Magnification (×) | Resolution (mm/px) |
|---|---|---|---|---|
| 100(outside spec) | 46.7 | 35.6 | 0.120 | 0.0287 |
| 150(outside spec) | 70.0 | 53.5 | 0.080 | 0.0431 |
| 200(min. WD) | 93.4 | 71.3 | 0.060 | 0.0575 |
| 250 | 116.7 | 89.1 | 0.048 | 0.0719 |
| 300 | 140.1 | 107.0 | 0.040 | 0.0862 |
| 400 | 186.8 | 142.6 | 0.030 | 0.1150 |
| 500 | 233.5 | 178.2 | 0.024 | 0.1437 |
| 750 | 350.2 | 267.4 | 0.016 | 0.2156 |
| 1000 | 466.9 | 356.5 | 0.012 | 0.2875 |
Four checks on whether the pair fits
- 01
Image circle
The lens's φ11 mm image circle (2/3") is far larger than the sensor's 7.05 mm diagonal (1/2.53"), so there is no vignetting at all, and only the center of the image circle, where aberration and distortion are lowest, is used. The trade-off is that only part of the lens's rated 39° angle of view is used: the effective horizontal angle narrows to 26.3°.
- 02
Resolving power headroom
The lens is designed to resolve 6 MP across the full 2/3" format. This camera places only 2 MP on a much smaller 1/2.53" area, so the lens resolves well beyond what the sensor needs, and there is no optical bottleneck. However, the 3.45 µm pixels are small, so diffraction grows as the aperture is stopped down. Beyond F8 the diffraction limit approaches the pixel size, so F2.8 to F5.6 is recommended.
- 03
Distortion
The rated 0.51% distortion is a low-distortion design suited to dimensional measurement and alignment. That figure covers the full 2/3" image circle; this camera uses only its center (1/2.53"), so effective distortion is lower still. For precision metrology, calibration (distortion correction) is still recommended.
- 04
Flange back and mechanical clearance
Both are C-mount, so they connect directly with no adapter. Note that the camera body is 29 × 29 × 42 mm and 100 g, while the lens is Φ33.0 × 41.2 mm: the lens diameter exceeds the body width (29 mm). If the camera is mounted flush against a wall or bracket the lens can interfere, so allow Φ33 mm of clearance in the mount design. In vibrating environments, a bracket that also supports the lens is recommended.
